CMM Manager is a task-oriented, highly intuitive CMM software package for both manual and CNC CMMs. It is a fully integrated environment featuring walk-in quick-measure, one-click CAD-measure, collision-free CAD-teach, virtual simulation, real-time verification, advanced path planning, CAD alignment, datum alignment and many more smart functions.

CMM Manager also offers flexible yet easy-to-use functionalities, including graphical probe configuration management, automatic tip calibration, cross section scanning and group feature measurement.

CMM Manager is PTB certified.

Fully integrated measurement system

  • Task oriented working environment with intuitive interface design, easy to learn and easy to use
  • Walk-in measurement for quick dimension check
  • One-click automatic CAD-measure
  • Collision-free CAD-teach
  • Virtual simulation and real-time verification

Advanced path planning

  • Automatic probing angle selection Collision detection and collision avoidance Inspection path optimization

Powerful alignment tools

  • Iterative datum alignment to improve the accuracy and repeatability of the alignment results for datum points distributed on prismatic surfaces as well as free-form sculptured surfaces.
  • CAD alignment for free-form surfaces
  • 3-2-1 alignment for prismatic datum features

Reverse engineering support

  • Actual measured data exported to CAD can be used to take your reverse engineering application to new heights of efficiency and accuray
  • Exporting actual measured data to an IGES or a DXF file format

Convenient reporting functions

  • Complete ASME Y14.5 GD&T support
  • Graphical deviaton codes for direct interpreation of measurement results
  • Graphics assisted tolerance reporting
  • Analysis function for CAD comparison
  • Various combination of customizable text and graphical report
  • Drag-and-drop graphical report creation
  • Web-ready HTML report output

Retrofit capabilities

  • Direct interface for CNC CMM retrofits:
    • Metris CMM, Sheffield Cordax, Brown & Sharpe, Mitutoyo, Zeiss, Numerex, Starrett
    • Renishaw UCC1/UCC2 controller retrofits
  • Manual CMM retrofits:
    • Sheffield Cordax, Brown & Sharpe, Mitutoyo, Zeiss, Numerex, Starrett
  • Articulated arm retrofits:
    • Metris, MicroscribeX
    • Faro, CimCore/Romer
    • Metris K-Series Optical CMM

Plug-n-Play Upgrades

CMM-Ma3ager will upgrade most new and used CMM's using existing hardware and is Windows 7 compliant while supporting legacy Windows systems back to NT and 95. A zero hardware retrofit is achieved with CMM-Manager, directly interfacing to CMM controller via serial, USB, Ethernet, GPIB, PCI / ISA expansion cards, WiFi and more. CMM-Manager supports probing systems including Renisahw PH20, SP25, TP20/2, Zeiss RDS, ST, TesaStar, USB and composite cameras, and more. For manual CMM's if a plug- n-play interface is not available, a USB interface / retrofit can be provided that will work with any machine.

  • Sheffield1 MP / SMP
  • Brown & Sharpe1
  • Zeiss
  • Starrett
  • Helmel
  • Wenzel
  • Mitutoyo
  • DEA1
  • LK / Metris
  • Numerex
  • Leitz1
  • Renishaw
  • Deva DCC
  • FARO Arm
  • MCA Arm
  • Sheffield1
  • Mitutoyo
  • Insight USB
  • Numerex
  • I-Probe
  • Romer Arm1
  • MCA II Arm
  • Brown & Sharpe1
  • Renishaw UCC
  • HelMel USB
  • K-CMM / Krypton
1Sheffield, Brown & Sharpe, DEA and Romer are registered trademarks of Hexagon Metrology

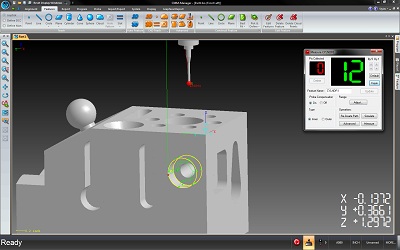

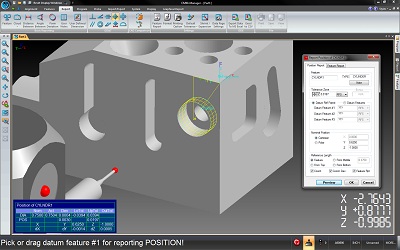

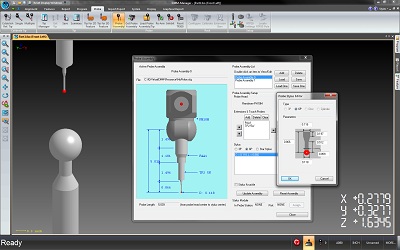

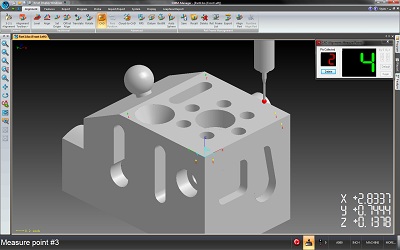

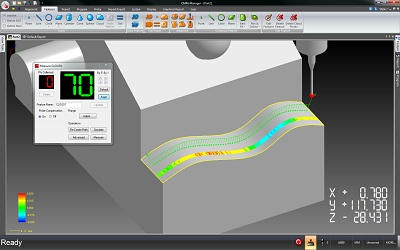

CMM-Manager Align CMM-Manager Measure CMM-Manager Report CMM-Manager Calibrate CMM-Manager CAD cmm-manager color display
